CONDUCTIVES
TAIWANDALOC / DALOC
(CONDUCTIVES ADHESIVES)
Trade Description
Product Feature
TAIWANDALOC / DALOC Electrically Conductive Adhesive contain has silver (or copper) of conductive properties . Having excellent electrical conductivity, and the bonding properties, and high stability. Can instead of the general conductive pads and metal solder. Electrically conductive adhesive can apply to a variety of materials, such as: metal, plastics, ceramics, quartz... etc. Extensive used in the electronic circuit the connection elements, thermal elements connector, a printed, circuit board, LED, IC semiconductor and various elements.
Product Description
|
Item No：9102H |
||
|
|
9102H conductive is suitable for bonding especially metals, glass, also can bonding ceramic and plastics. Fast dry at relatively low temperature and high conductivity. Dry surface time：3~5min Curing time：25℃ / 24 hour 60℃ / 30 min |
Appearance：Silver paste |
|
Viscosity@25℃：20,000cps |
||
|
Operating Temperature Range：-50 ~ +150℃ |
||
|
Tensile shear strength：17 N/mm2 |
||
|
Packing：20gm |
||
|

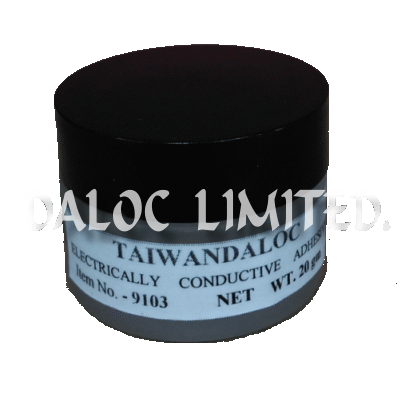

Item No：9103 & 9105 |
||
|
|
9103 & 9105 is an one silver bases component which can be used as an adhesives or coating , curing at room temperatures . 9103&9105 is suitable for bonding especially metals, glass, also can bonding ceramic and plastics such as nylon, PC, styrene and even PE, PP etc. Dry surface time：9103：3 ~ 5min 9105：2 ~ 3min Curing time：25℃ / 24 hour 60℃ / 30 min |
Appearance：Silver paste |
|
Viscosity@25℃：9103：25,000 cps 9105：100cps |
||
|
Operating Temperature Range：-40 ~ +120℃ |
||
|
Tensile shear strength：9103：13 N/mm2 9105：4 N/mm2 |
||
|
Packing：20gm |
||
|
Item No：9104 & 9106 |
||
|
|
9104 & 9106 is an one silver- copper matrix bases component which can be used as an adhesives or coating, curing at room temperatures. 9104 & 9106 is suitable for bonding metals, glass, ceramic and plastics such as nylon, PC, styrene and even PE, PP etc. Dry surface time：9104：5 ~ 10min 9106：3 ~ 5min Curing time：25℃ / 24 hour 60℃ / 30 min |
Appearance：Silver-copper matrix |
|
Viscosity@25℃：9104：9,000 cps 9106：100cps |
||
|
Operating Temperature Range：-40 ~ +100℃ |
||
|
Tensile shear strength：9104：13 N/mm2 9106：4.8 N/mm2 |
||
|
Packing：20gm |
||
|

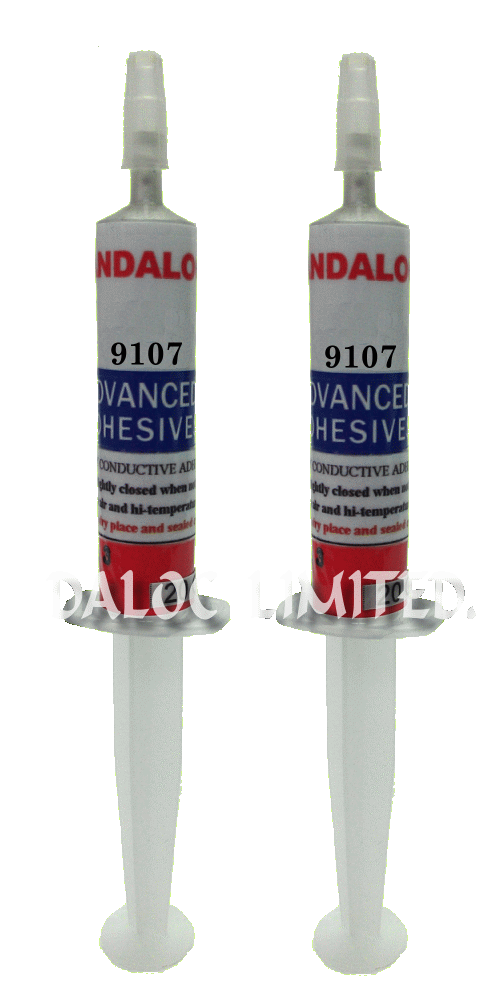

Item No：9107 |
||
|
|
9107 is an one silver / epoxy bases component with no mixing or pot life problems.9107 is suitable for bonding metals, glass, ceramic and plastics. It is used in many application such as bonding IC chip, printed circuit board repair and replacing solder joints. Curing time：100℃ / 1hour 120℃ / 30 min 150℃ / 20 min |
Appearance：Silver paste |
|
Viscosity@25℃：Paste |
||
|
Operating Temperature Range：-50 ~ +200℃ |
||
|
Tensile shear strength：17.5 N/mm2 |
||
|
Packing：20gm |
||
|
Item No：9115 |
||
|
|
9115 main purpose is protection and translucent nature of the electromagnetic conductivity. Can be stencil printing or brushing, curing at room temperatures or by hot air. 9115 belong to air-drying type shows better properties when baked, stir thoroughly before use. 9115 easy to use. Apply by brush, roller, or spray. Curing time：25℃ / 3hour 60℃ / 30 min |
Appearance：Light blue |
|
Viscosity@25℃：7,000 ~ 13,000cps |
||
|
Operating Temperature Range：-10 ~ +65℃ |
||
|
Tensile shear strength：- |
||
|
Packing：20gm |
||
